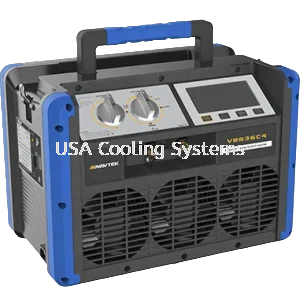

Value Recovery Unit VRR24M-C

Light, Fast

DC Brushless Motor
  • Faster recovery
  • Lighter

Better Visibility
  • Easy to read large LCD display
  • Backlit display for clarity

Micro Channel Condenser
  • Fast recovery
  • Better cooling performance compared to traditional condenser

Oil-free Compressor
  • Suitable for all commonly used refrigerants

Self-purge Function
  • Prevent mixing of various refrigerants

Model VRR24M-C
Refrigerants Category III: R12, R401C, R134a, R500, 1234yf
Category IV: R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509
Category V: R402A, R404A, R407A, R407B, R410A, R507, R32
Motor Brushless DC motor 1HP
Motor Speed 3000 rpm
Power Supply 220-240V~50/60Hz  115V~/60Hz
Maximal Current Draw 6.5 A 12 A
Compressor Oil-less, Air-cooled, Piston style
Automatic Safety Shut-Off 38.5bar / 3850kPa (558psi)
Recovery Rate (kg/min)   Category III Category IV Category V
Vapor 0.43 0.54 0.54
Liquid 3.36 4 4.2
Push/Pull 7.5 8.5 9.5
Operating Temperature 0°C - 40°C
Dimensions 370 x 250 x 297 mm
